M.Y. 21 Madone SLR Parts Quick Reference

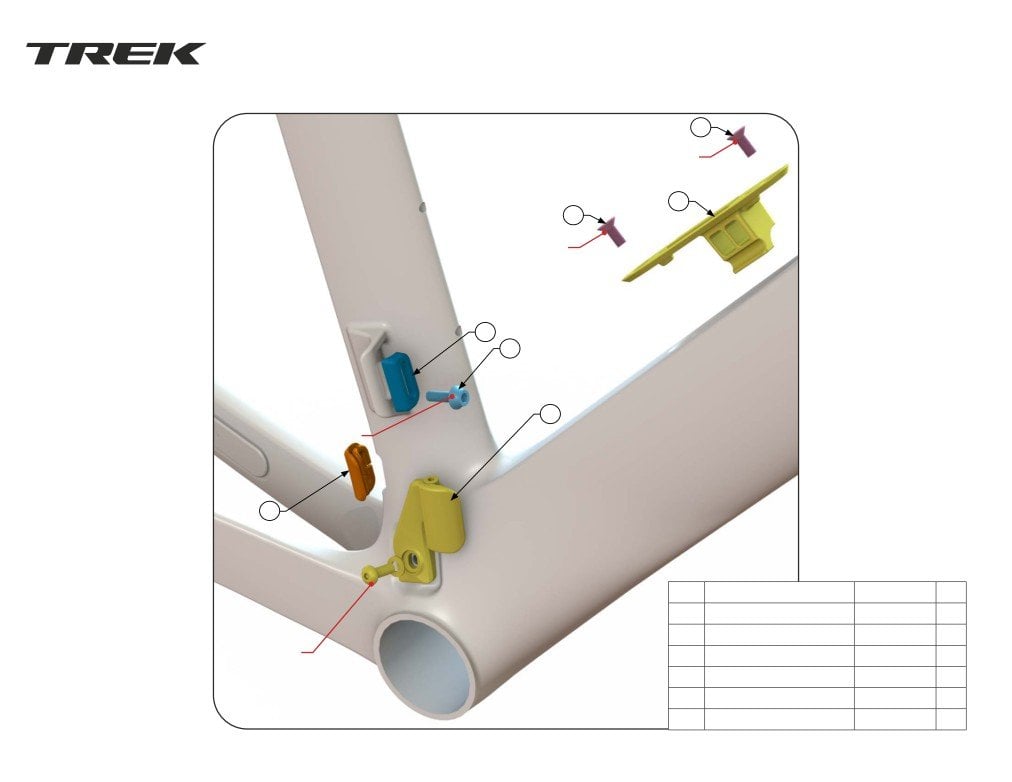

Page 2 of 14
Product Support
M.Y. 21 Madone SLR Parts Quick Reference
5
3-4 Nm
4
5
3-4 Nm
2
3
6
4-5 Nm

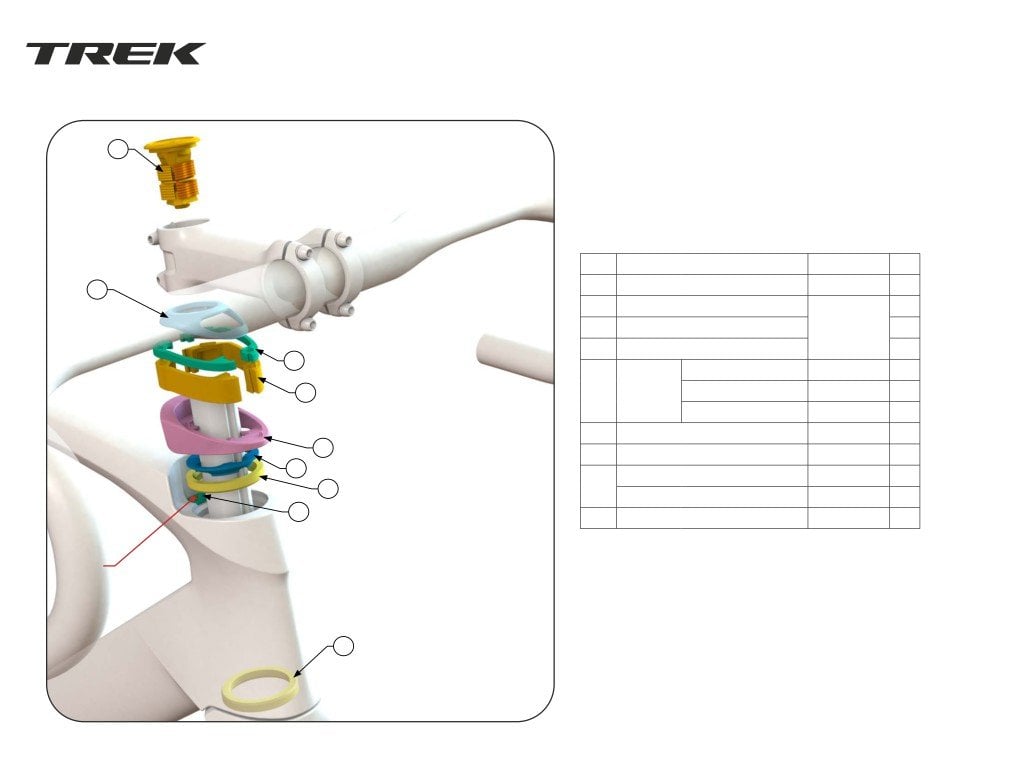

1
Item
Description
Part Number
Qty
1
FD Grommet
W326042
1
2
FD Washer
W531901
1
3 Nm
3
FD Bolt
W543903
1
4
Control Center
W1044890
1
5
Control Center Bolts
W304515
2
6
3S Chainkeeper
573827
1
revision22.Dec.2020
Page 3 of 14
Product Support
M.Y. 21 Madone SLR Parts Quick Reference
4
Item
Part
Description
Part Number
Low -15° 100mm
W569172
Low -15° 110mm
W569173
1
2
Low -15° 120mm
W569174
Low -15° 130mm
W569175
5.2 Nm
Stem
1
+
High -7° 90mm
W569177
Hardware
High -7° 100mm
W569178
5
High -7° 110mm
W569179
High -7° 120mm
W569180
High -7° 130mm
W569181
VR-CF, 38cm
W561896
VR-CF, 40cm
W561897
5.2 Nm
2
Handlebar
6
VR-CF, 42cm
W561898
VR-CF, 44cm
W561899
3
Gloss Amethyst
W5251344
7

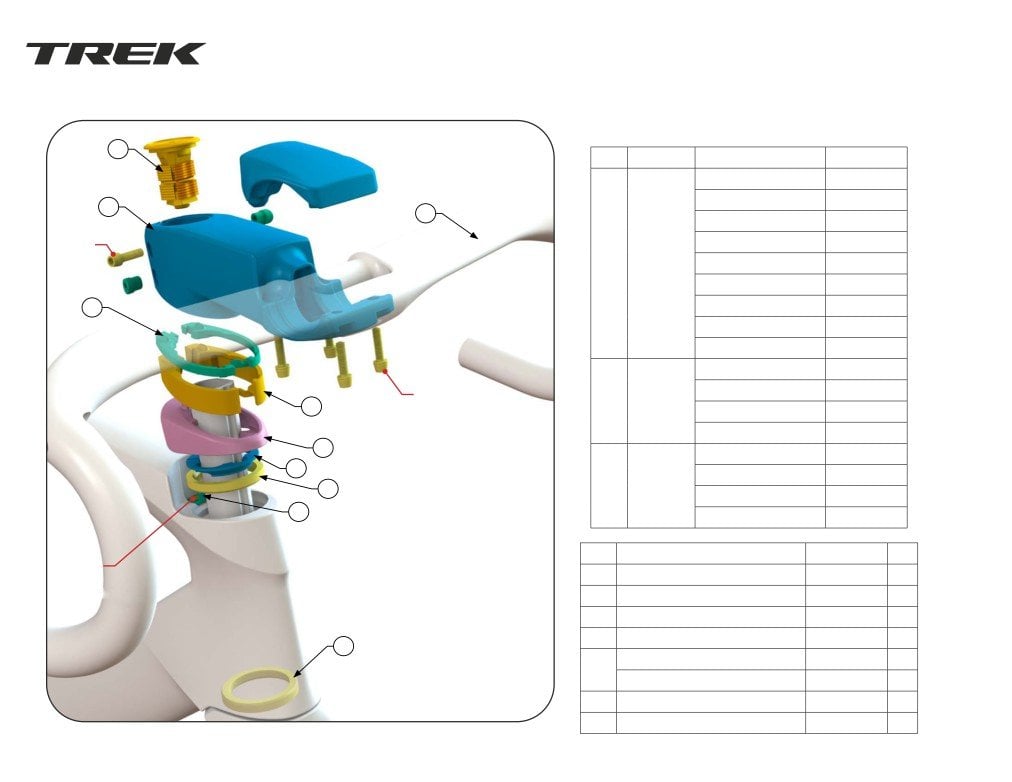

Headset
Gloss Trek Black
W591670
9
3
Cover
Gloss Trek White
W5257196
8
Gloss Viper Red
W577659
Item
Description
Part Number
Qty
0.7 Nm
4
Expander Wedge
W577200
1
5
2-Piece Headset Spacer, 5mm
577362
1
6
2-Piece Headset Spacer, 15mm
577363
1
7
Custom Split Ring
W563834
1
10
Steerer Stop
W565905
1
8
M3x12mm Bolt
W318529
1
9
Upper Headset Bearing
W513538
1
10
Lower Headset Bearing
W540243
1
revision22
.Dec.20
20
Page 4 of 14
Product Support
M.Y. 21 Madone SLR Parts Quick Reference
1
Item
Description
Part Number
Qty
1
Expander Wedge
W577200
2
2
Cable Routing Spacer
1
3
2-Piece Headset Spacer, 5mm
W556873
2
4
2-Piece Headset Spacer, 15mm
2
3
Gloss Alpine Blue
W592074
1
Headset
4
5
Gloss Quicksilver
W5251347
1
Cover
Gloss Trek Black
W592076
1
6
Custom Split Ring
W563834
1
5
7
Upper Headset Bearing
W513538
1
6
Steerer Stop
W565905
1
7
8
M3x12mm Bolt
W318529
1
8
9
Lower Headset Bearing
W540243
1
0.7 Nm
9
revision22.Dec.2020
Page 5 of 14
Product Support
M.Y. 21 Madone SLR Parts Quick Reference
1
3
2 Nm
2
4
3
2 Nm
4
5
6
5.2 Nm
5.2 Nm
8
7
9
10
Item
Description
Part Number
Note
Qty
1

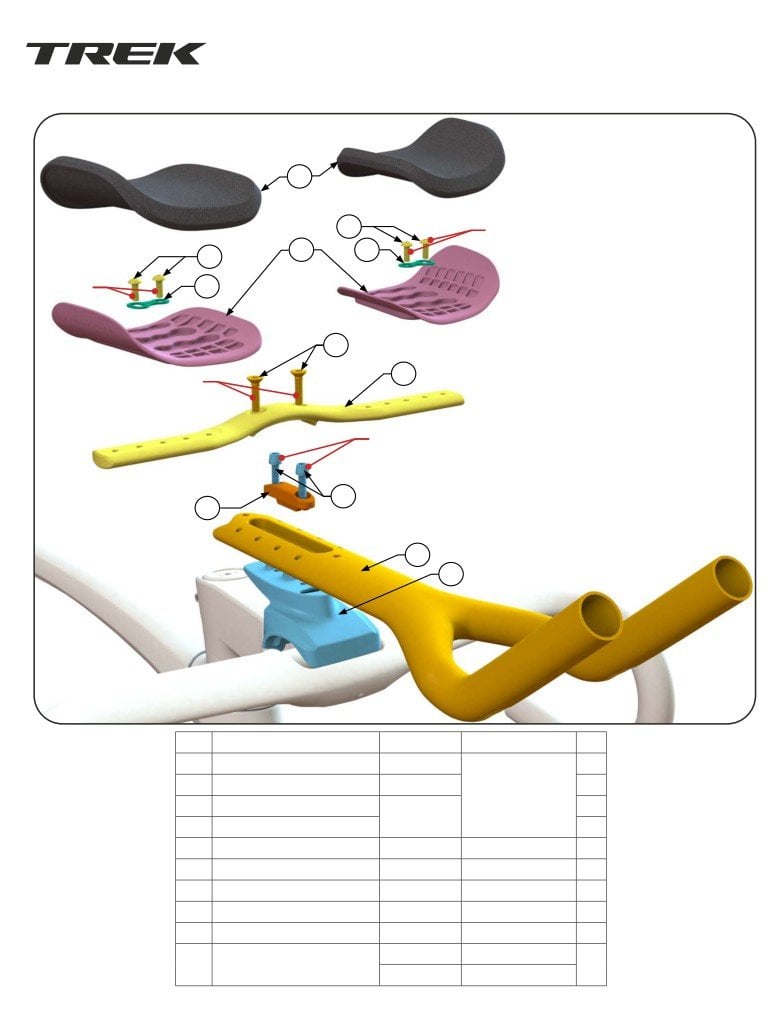

Arm Pads
541423
2
2
Arm Pad Cradle
-
Kit
2
3
Arm Pad Bolts
541422
2
517271
4
Dogbone Washers
2
5
Pad Wing Bolts
W333619
M5x21mm
2
6
Pad Holder Wing
W326497
1
7
Mono Extension Slider
W582448
1
8
Mono Extension Slider Bolts
W437687
M5x20mm
2
9
Ergo TT Mono Extension
W582444
1
Madone Speed
W581351
"High” -7° Stems
10
1
Faceplate
W581350
"Low” -15° Stems
revision22.Dec.2020

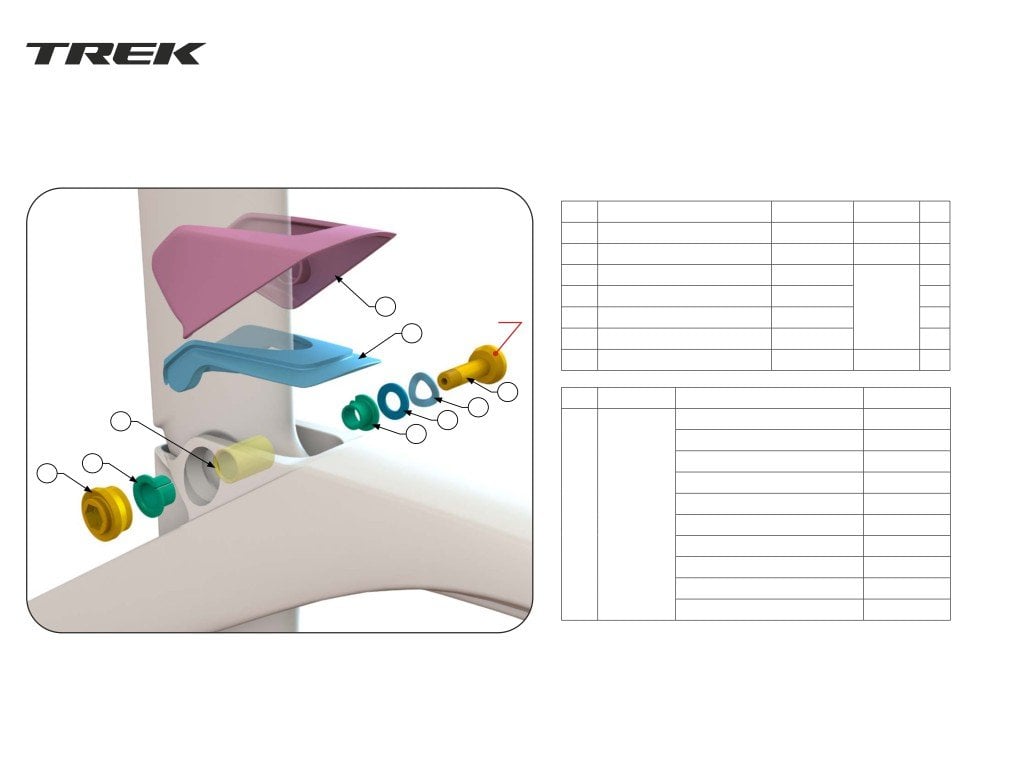

Page 6 of 14
Product Support
M.Y. 21 Madone SLR Parts Quick Reference
Item
Description
Part Number
Kit
Qty
1
IsoSpeed Nut
n/a
W569265
1
2
Flanged IsoSpeed Bushing
W561683
n/a
2
3
Cylindrical IsoSpeed Bushing
n/a
1
4
Washer, 15x8.4x0.8mm
n/a
1
8
W569265
5
Wave Washer
n/a
1
8 Nm
7
6
IsoSpeed Bolt
n/a
1
7
Internal IsoSpeed Cover
W565904
n/a
1
6
Item
Part
Description
Part Number
5
3
4
Matte Dnister Black
W573717
2
Matte Onyx
W5251540
2
Gloss Crystal White
W5251543
1
Gloss Amethyst
W5851025
External
Gloss Crimson
W5251538
8
IsoSpeed
Gloss Radioactive Coral
W5251539
Cover
Gloss Navy Smoke
W5251537
Gloss Radioactive Red
W592547
Gloss Lithium Grey
W5251542
Gloss Alpine Blue
W592074
revision22
.Dec.20
20

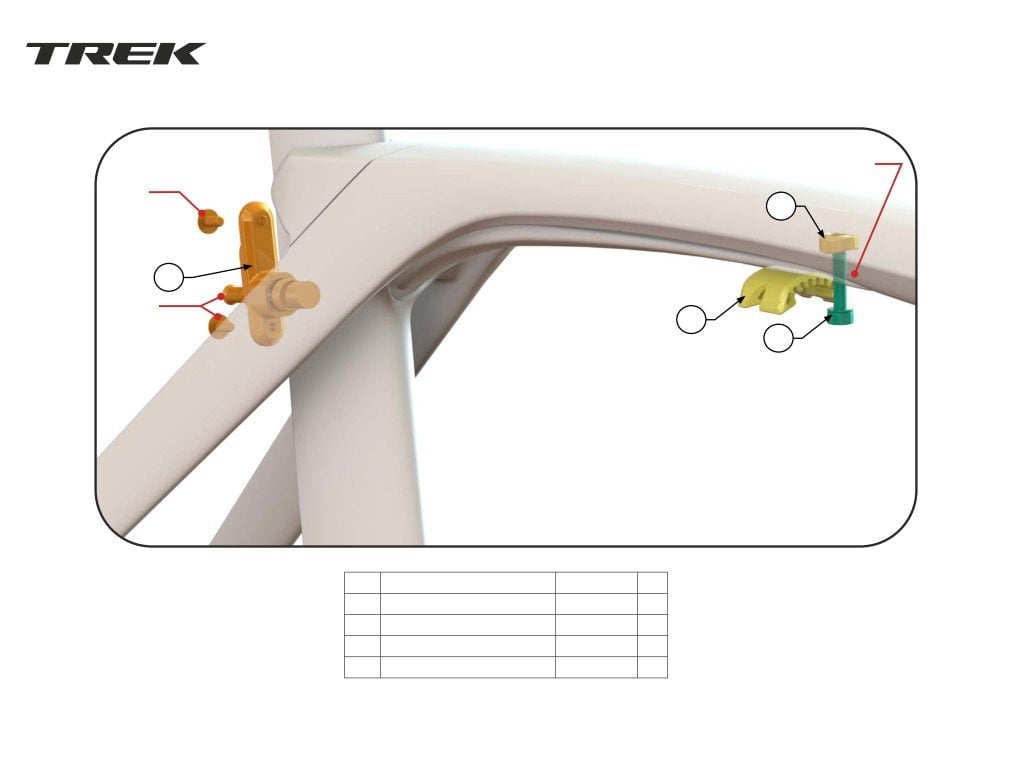

Page 7 of 14
Product Support
M.Y. 21 Madone SLR Parts Quick Reference
see decal for torque
2 Nm
4
1
2 Nm
2
3
Item
Description
Part Number
Qty
1
Disc Brake IsoSpeed Damper
W564027
1
2
IsoSpeed Slider
W564294
1
3
Slider Bolt
W579510
1
4
IsoSpeed Bumper
W598668
1
revision22.Dec.2020

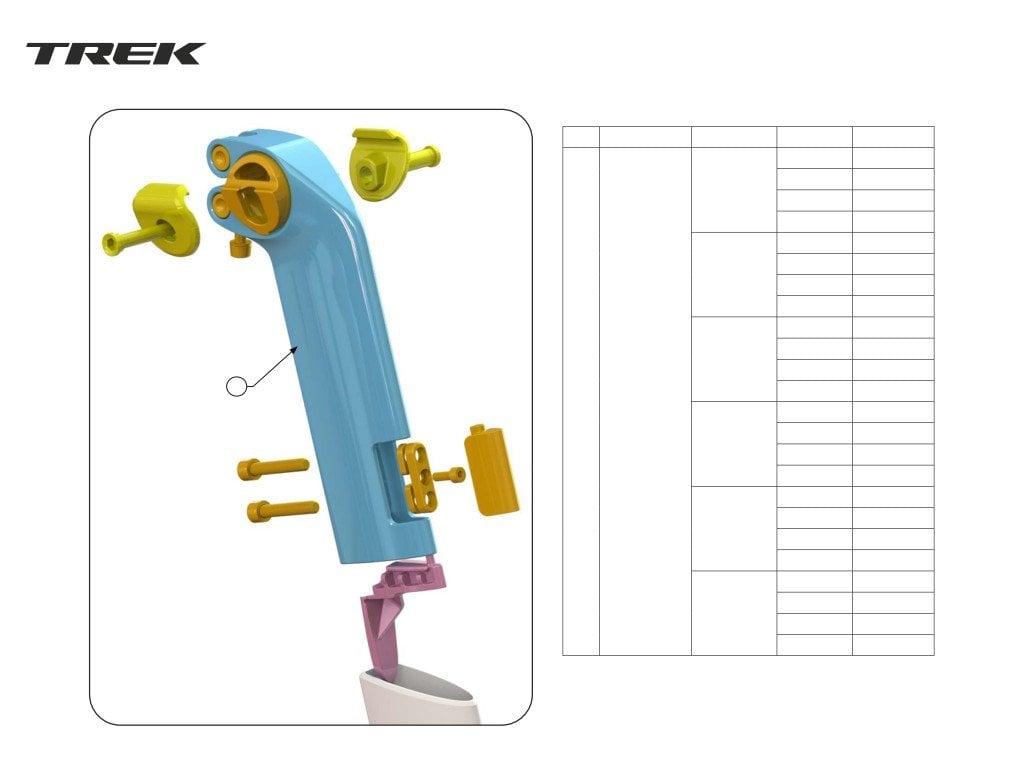

Page 8 of 14
Product Support
M.Y. 21 Madone SLR Parts Quick Reference
Item
Part
Color
Size
Part Number
160x5mm
W569838
Gloss
160x25mm
W569839
Viper Red
205x5mm
W569840
205x25mm
W569841
160x5mm
W569851
Gloss
160x25mm
W569852
Quicksilver
205x5mm
W569853
205x25mm
W569854
160x5mm
W1052552
Gloss
160x25mm
W1052553
Amethyst
205x5mm
W1052554
1
205x25mm
W1052555
1
Seatpost
160x5mm
W588903
Gloss
160x25mm
W588904
Alpine Blue
205x5mm
W588905
205x25mm
W588906
160x5mm
W1052380
Gloss
160x25mm
W1052381
Onyx Carbon
205x5mm
W1052382
205x25mm
W1052383
160x5mm
W588899
Gloss
160x25mm
W588900
Trek Black
205x5mm
W588901
205x25mm
W588902
revision22
.Dec.20
20

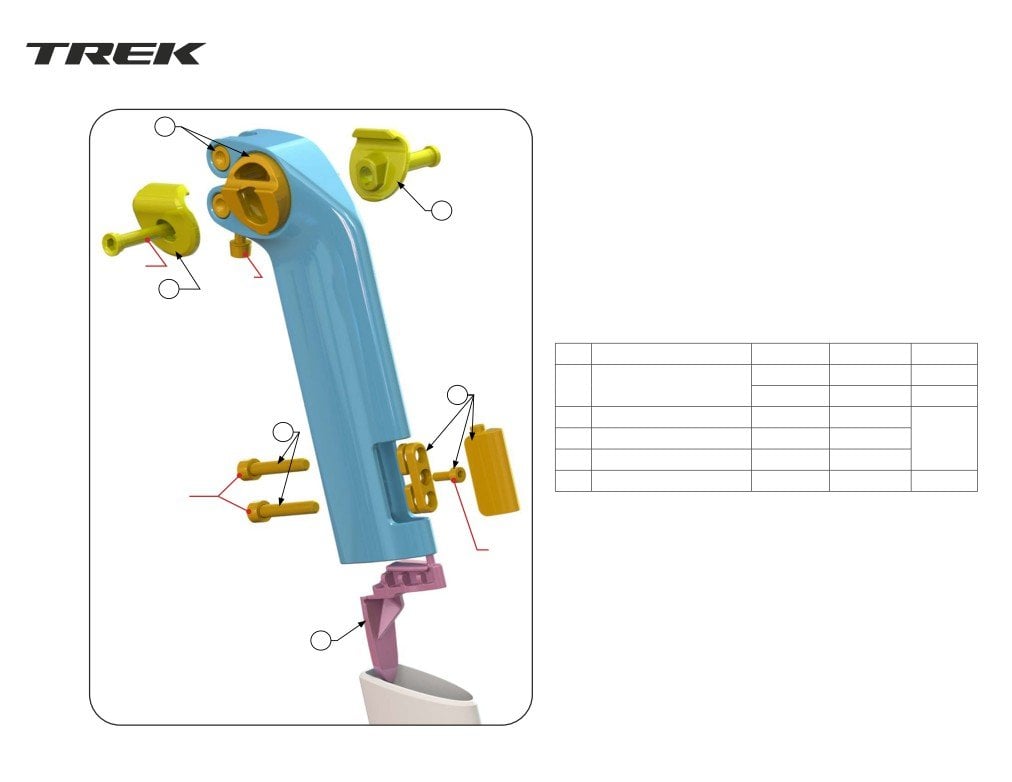

Page 9 of 14
Product Support
M.Y. 21 Madone SLR Parts Quick Reference
2
1
8-10 Nm
6-8 Nm
1
Item
Part
Note
Part Number
Kit
7mm Rails
W524900
1
Saddle Clamp Ears
4
10mm Rails
W524901
2
Saddle Tilt Clamp + Barrel
525034
3
3
Seatpost
Wedge Bolts
M6x35mm
n/a
W574676
4
Wedge + Plate + Bolt
M4x12mm
n/a
5
Seatpost Tail
W557630
5 Nm
4 Nm
5
revision22.Dec.2020

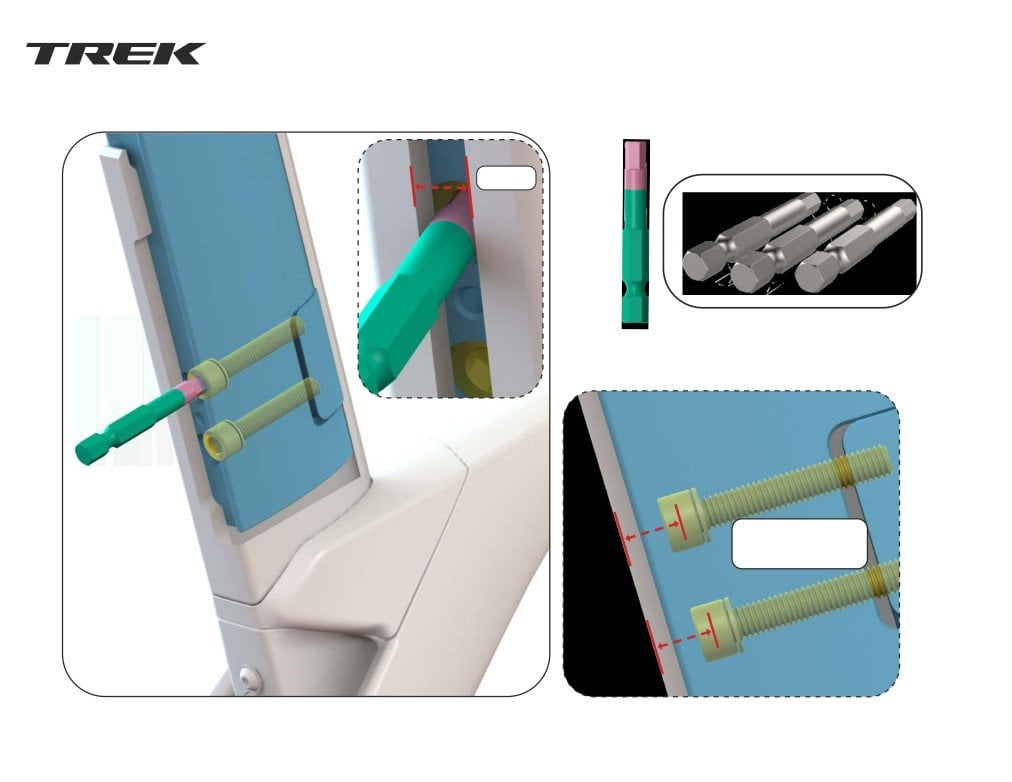

Page 10 of 14
Product Support
M.Y. 21 Madone SLR Parts Quick Reference
15mm
{
6mm
580682, 5mm Hex Bit 3-pack
≥ 15mm!
revision22.Dec.2020

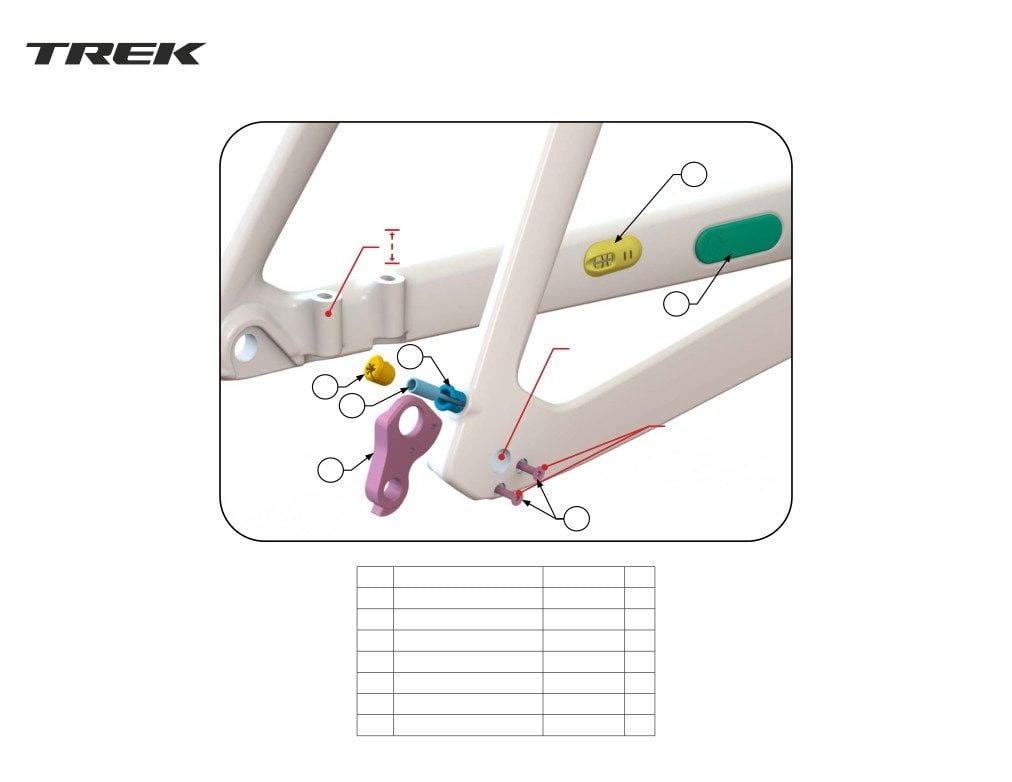

Page 11 of 14
Product Support
M.Y. 21 Madone SLR Parts Quick Reference
6
25mm
7
M12x1.75
5
3
4
0.7Nm
1
2
Item
Description
Part Number
Qty
1
Derailleur Hanger
W524188
1
2
Derailleur Hanger Bolts
W524884
2
3
Di2 RD Grommet
W317292
1
4
Long-Nosed Ferrule
W517272
1
5
RD Housing Stop
W320469
1
6
Brake Housing Grommet
W330578
1
7
DuoTrap Cover
W521455
1
revision22.Dec.2020

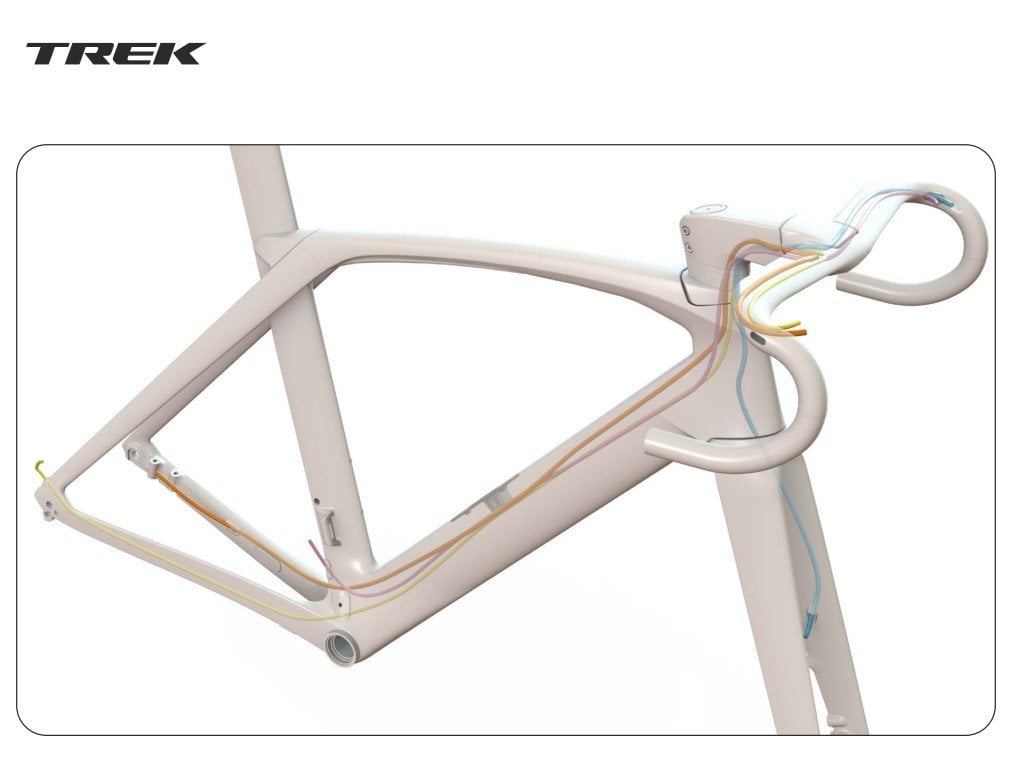

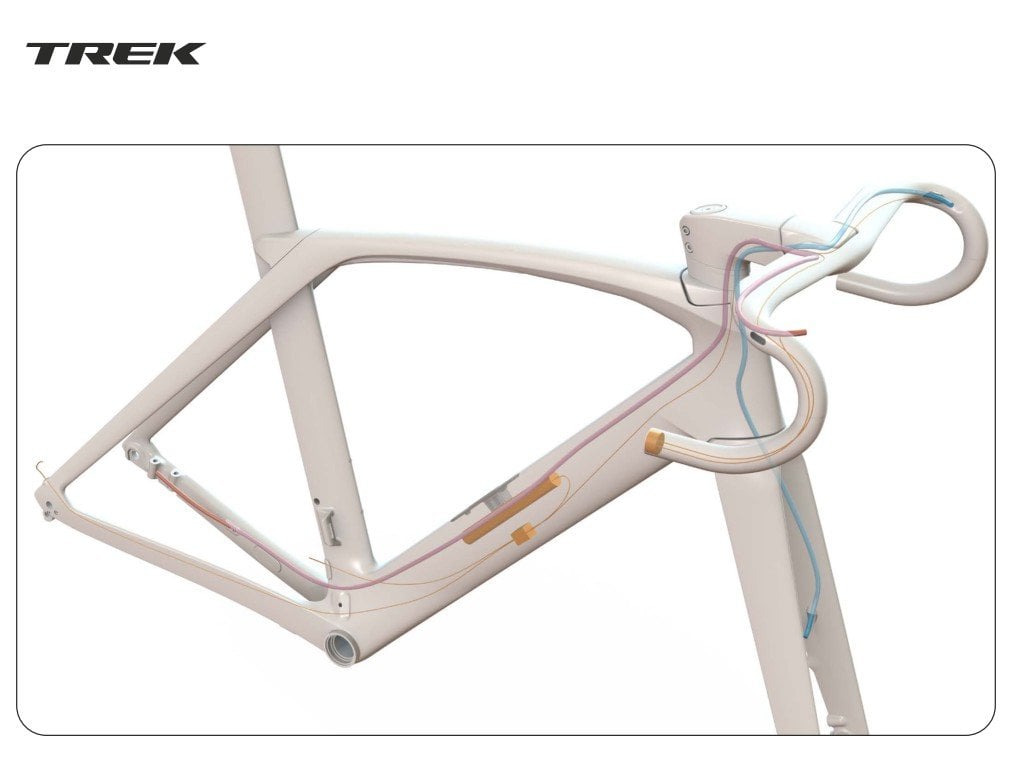

Page 12 of 14
Product Support
M.Y. 21 Madone SLR Parts Quick Reference
revision22.Dec.2020
Page 13 of 14
Product Support
M.Y. 21 Madone SLR Parts Quick Reference
revision22.Dec.2020

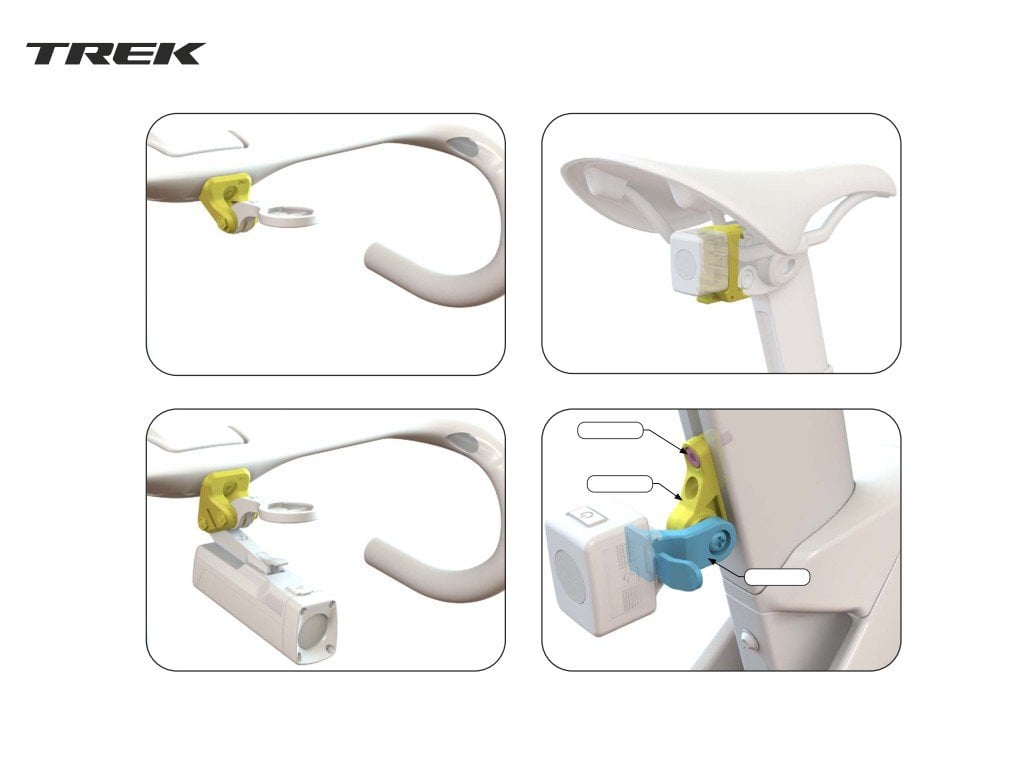

Page 14 of 14
Product Support
M.Y. 21 Madone SLR Parts Quick Reference
Mono Front, W571136
Seatpost Rear, W561410
W561409
W557631
418932
Duo Front,W571137
Modified Reflector Bracket
revision22.Dec.2020
